ENGINEER DRAWING

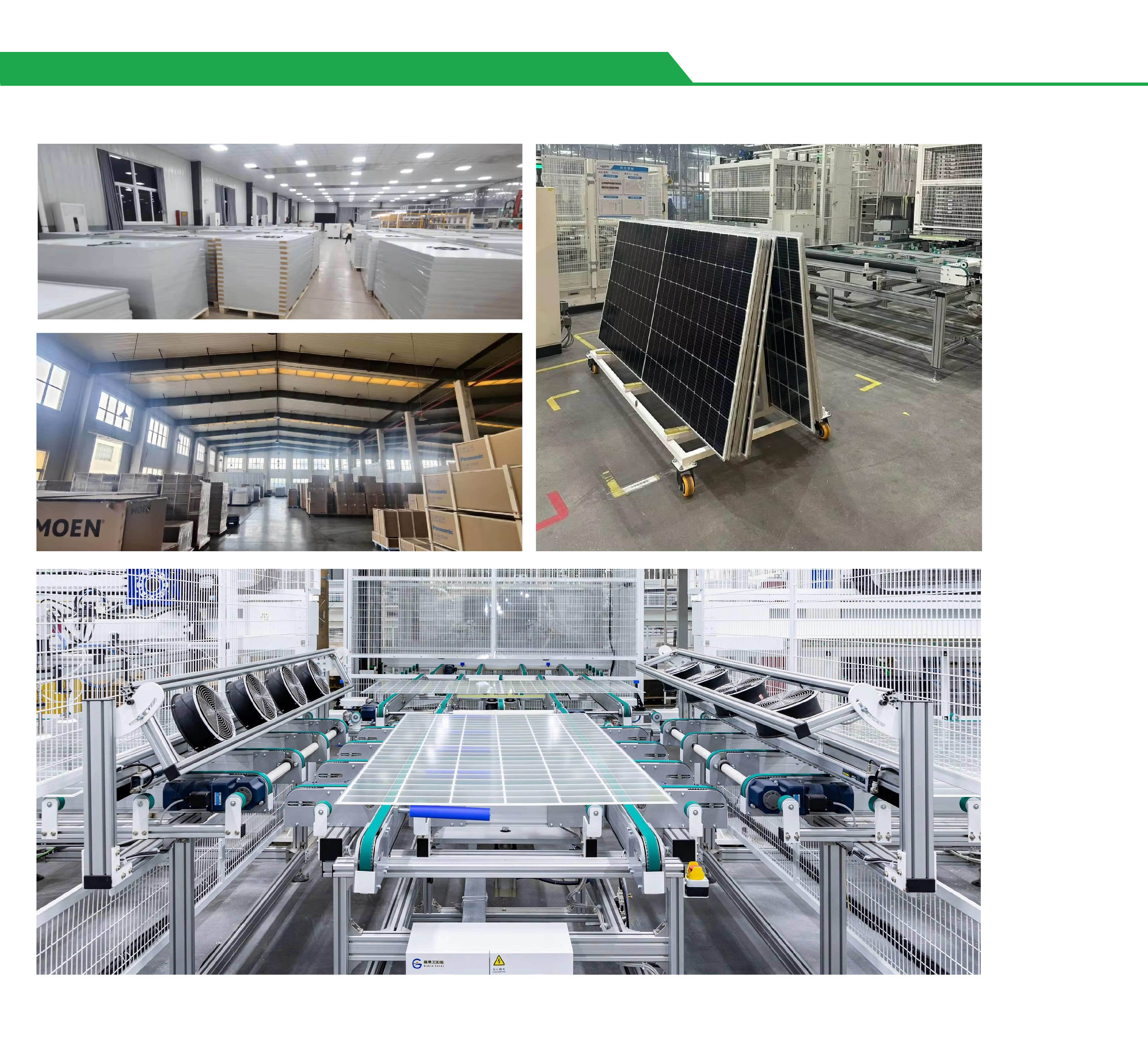

Factory production process
|

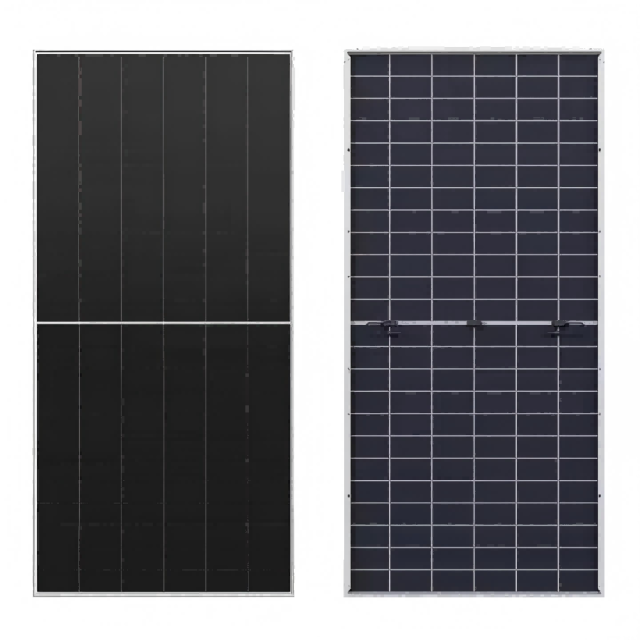

Module Type
|
LR7-72HYD-625M
|
LR7-72HYD-630M
|
LR7-72HYD-635M
|
LR7-72HYD-640M
|
LR7-72HYD-645M
|
LR7-72HYD-650M
|
LR7-72HYD-655M
|
LR7-72HYD-660M
|
|
Maximum Power (Pmax/W)
|
625
|
630
|
635
|
640
|
645
|
650
|
655
|
660
|
|
Open Circuit Voltage (Voc/V)
|
53.30
|
53.40
|
53.50
|
53.60
|
53.70
|
53.80
|
53.90
|
54.00
|
|
Short Circuit Current (Isc/A)
|
14.85
|
14.93
|
15.01
|
15.09
|
15.17
|
15.25
|
15.33
|
15.41
|
|
Voltage at Maximum Power (Vmp/V)
|
44.16
|
44.26
|
44.36
|
44.46
|
44.56
|
44.65
|
44.75
|
44.85
|
|
Current at Maximum Power (Imp/A)
|
14.16
|
14.24
|
14.32
|
14.40
|
14.48
|
14.56
|
14.64
|
14.72
|
|
Module Efficiency(%)
|
23.1
|
23.3
|
23.5
|
23.7
|
23.9
|
24.1
|
24.2
|
24.4
|
|
Cell Orientation
|
144 (6×24)
|
|||||||
|

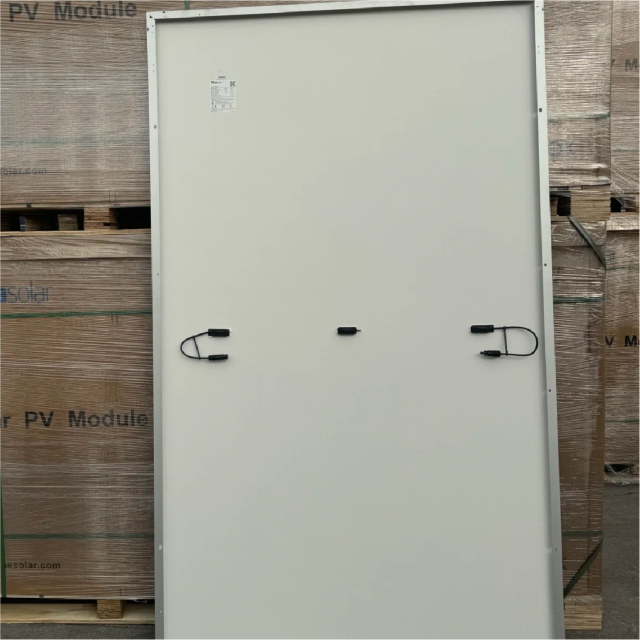

Junction Box
|
IP68, three diodes
|
|||||||
|
Output Cable
|
4mm
2 , +400, -200mm/±1400mm
length can be customized
|
|||||||
|
Glass
|
Dual glass, 2.0+2.0mm semi-tempered glass
|
|||||||
|
Frame
|
Anodized aluminum alloy frame
|
|||||||
|
Weight
|
33.5kg
|
|||||||
|
Dimension
|
2382×1134×30mm
|
|||||||
|

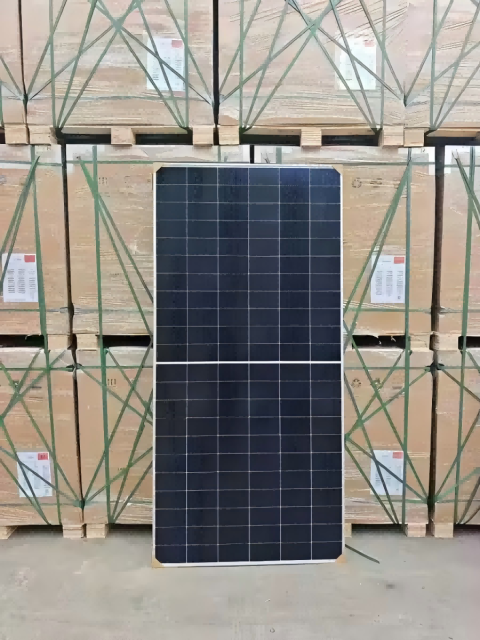

Packaging
|
36pcs per pallet / 144pcs per 20’GP / 720pcs per 40’HC
|
|||||||
|
Operational Temperature
|
-40℃ ~ +85℃
|
|||||||
|
Power Output Tolerance
|
0 ~ 3%
|
|||||||
|
Maximum System Voltage
|
DC1500V (IEC/UL)
|
|||||||
|
Maximum Series Fuse Rating
|
30A
|
|||||||
|
Nominal Operating Cell Temperature
|
45±2℃
|
|||||||
|
Protection Class
|
Class II
|
|||||||
|
Bifaciality
|
70±5%
|
|||||||
|
Fire Rating
|
UL type 29
IEC Class C
|
|||||||
Q: Why did I choose your company?
* Can provide Longi Jinko JA Trina Canadian Dinghui brand solar panels

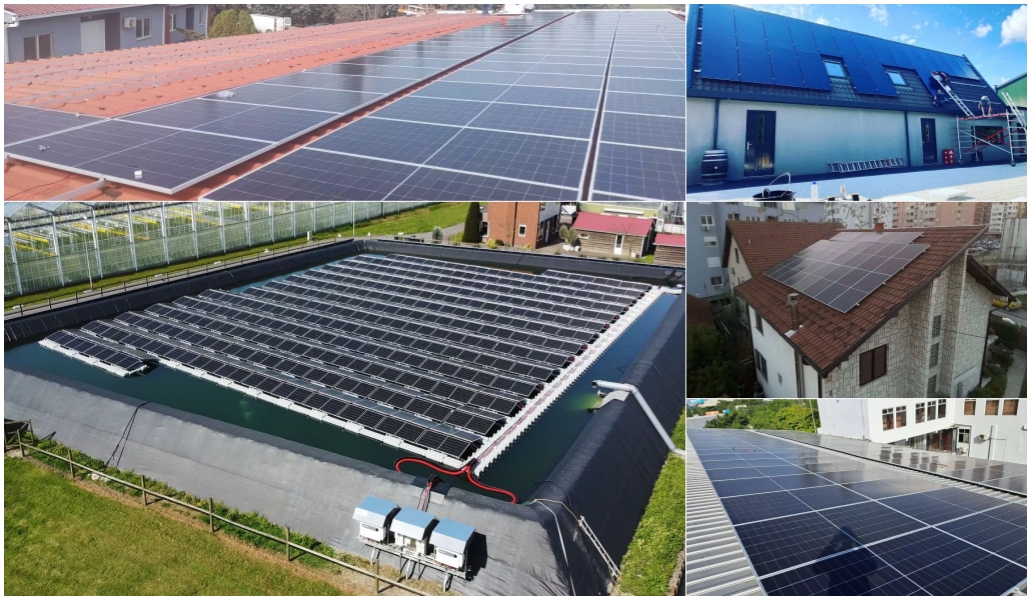

* 15+ years of experience in installing solar panels, with professional engineers designing solutions
* Trade with customers in more than 70 countries around the world
* QC members will control the quality from the raw material to the final products
* 24-hour service available
* 7-day delivery upon receipt of payment
* Over 80% repurchase rate and 100% positive reviews
* Perfect after-sales service team
* Support any method of inspection, such as installation supervision, video, etc
* Will always follow the "professional" and "sincere"
* Guaranteed quality and complete certification
* Competitive prices bring higher profits to customers
* Multiple repeat purchases by customers
* A professional Solar Panels Manufacturer in China.
* Multiple warehouses and good cooperative factories in China
* Good reputation, guaranteed product quality, and many repeat customers
* Professional inspection process before shipment
Q: Can you get the solar panel customized for us?A: Of course, brand name, solar panel color, designed unique patterns are available for customization.
Q: What kind of service can you provide once we place the order?A: After we receive the order, we will arrange the production, and our QC members will control the quality from the raw material to the final products. We can arrange the shipment by sea. Meanwhile, as our staff have worked in this field for many years, we can also provide you one-stop solution for a solar energy system in a perfect way.
Q: Can the price of solar products be cheaper?A: Of course, you will be offered a very good discount for large quantities.
Q: Whether technical support provided?A: Yes, we can provide remote guidance, installation, and off-grid system support.
