photovoltaic panel 560-585W

Longi Himo 560- 580W N Type Solar Panels 560W 570W 580W 585W High Power
Brand Name: LONGi Solar Panel
Place of Origin: China
Cell size: 182 mm x 182 mmLongi Himo 560- 580W N Type Solar Panels 560W 570W 580W 585W High Power
Type: PERC, Half Cell
Panel Efficiency: 22.6%
Panel Dimensions: 2278*1134*35mm
Model Number: HiMO6 Explorer LR5-72HTH 560-585M
Cell Type: Monocrystalline
Application: Solar Power System
Frame: Anodized Aluminium Alloy
Junction Box: IP68, three diodes
Module: Longi Hi-MO 6
Weight: 27.5kg
Warranty: 25 Years

GET A QUOTE

Description
FAQ

LONGi's 560- 585W solar panels are its Hi-MO 7/8 series flagship products. They use N-type TOPCon or HJT (heterojunction) technology, combined with large-size silicon wafers and high-density packaging technology. They have ultra-high power, high conversion efficiency, and low levelized cost of electricity (LCOE) as their core advantages. They are mainly aimed at large-scale ground power stations, industrial and commercial project,s and "photovoltaic +" comprehensive application scenarios.

More Solar Panel Details

Ultra-high power density

Using bifacial microcrystalline technology and SMBB (super multi-main grid) design, the resistance loss is reduced, and the power is increased by 10%-15% compared with traditional P-type modules.

For example, 585W modules generate 6%-8% more electricity than PERC modules under the same land area.

Bifacial power generation and weak light response

The back gain reaches 15%-35% (snow/light ground), and the power generation efficiency under weak light conditions (rainy, morning, and evening) is increased by 5%-10%.

Extremely low attenuation and ultra-long life

The first-year attenuation is ≤1%, the linear annual attenuation is ≤0.4%, and the 30-year power retention rate is ≥87% (N-type technology advantage).

Passed international certifications such as IEC 61215/61730, UL, TÜV, etc., and can adapt to extreme environments from -40℃ to 85℃.

Anti-adverse performance

Anti-PID (potential induced degradation), anti-salt spray (C5 grade anti-corrosion), strong wind (6000Pa), and snow load (4000Pa), suitable for coastal, high altitude, and snowy areas.
More Solar Panel Details

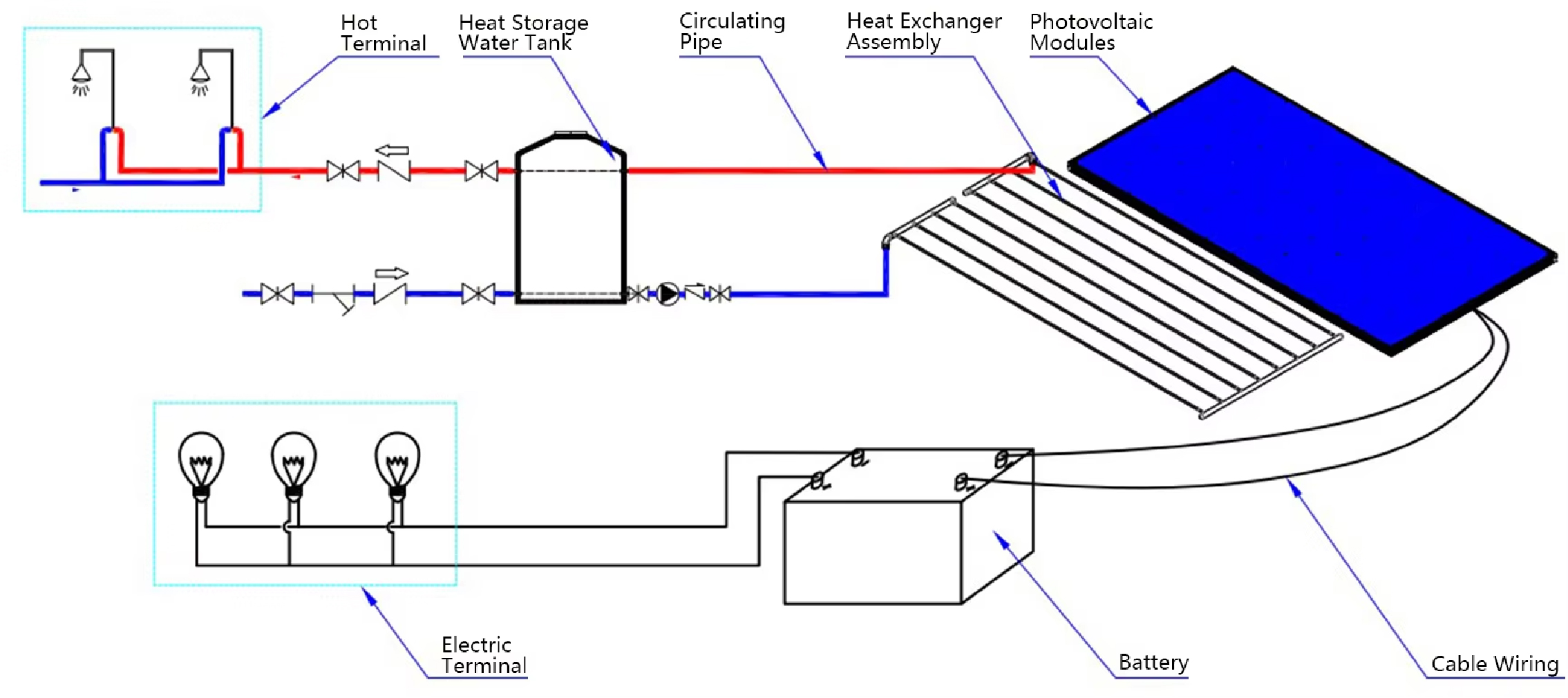

Operating Principle:

1. The photovoltaic module 1 is combined with the heat exchanger module 2 through a special process.
2. The heat generated by the photovoltaic module 1 when using sunlight to generate electricity is transferred to the heat storage tank 4 by using the circulating pipe 3 and the heat exchanger module 2. At the same time, the working temperature of photovoltaic module 1 is reduced to improve its photoelectric conversion efficiency.
3. Then, the hot water is conveyed to the user through the hot end of the tank
4. The electric energy generated by photovoltaic module 1 is stored in battery 6 through cable wiring 7, and then the domestic electricity is transmitted to the end user through battery 6.

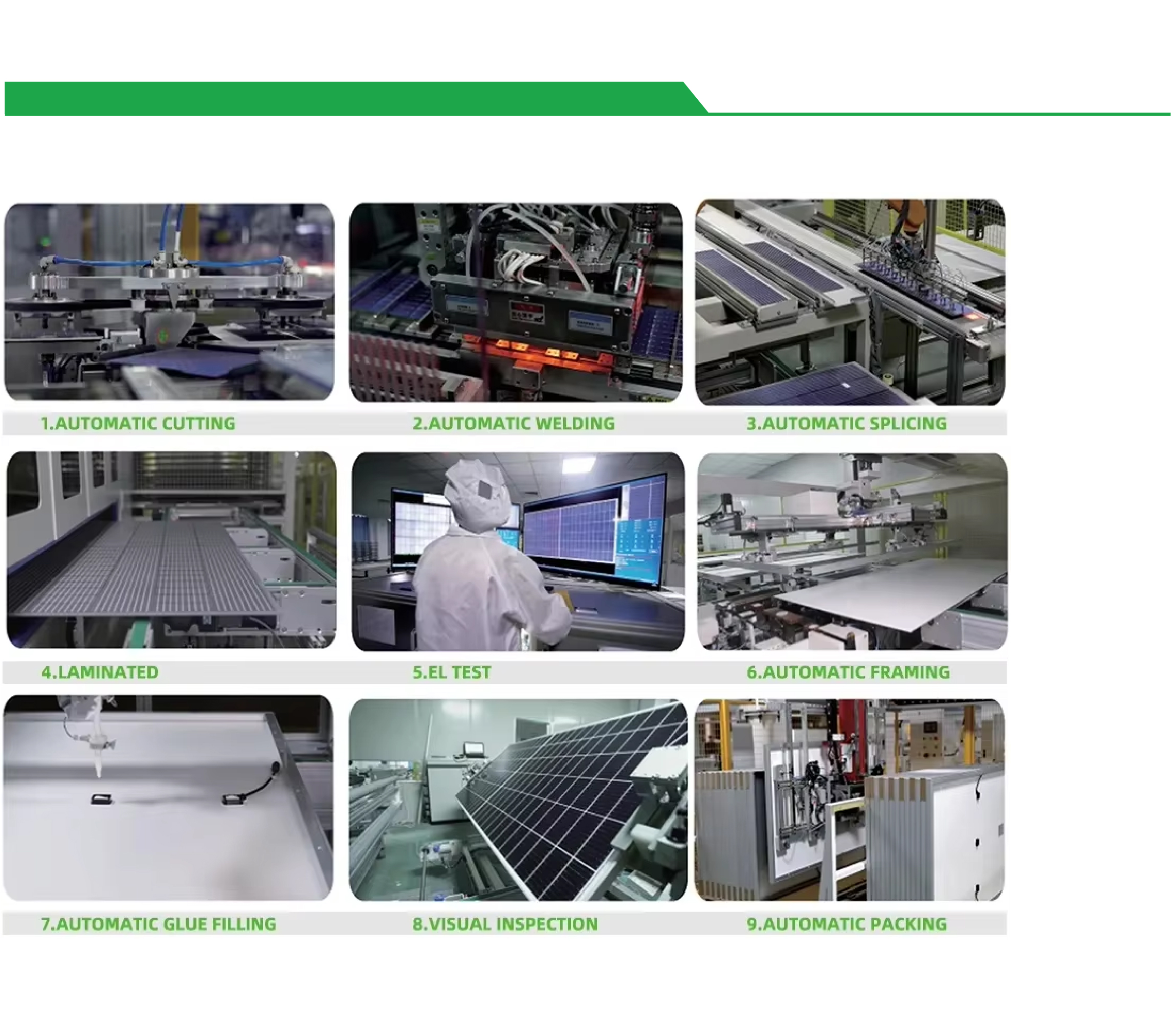

Factory Production Process

Package and ship

Application scenarios

With the high-efficiency output, ultra-low attenuation, and full-scenario adaptability of N-type technology, LONGi 560- 585W modules have become an ideal choice for centralized power stations, industrial and commercial, and special environment projects, especially for investors who pursue long-term high returns and technological foresight

User selection suggestions

Large power stations: give priority to 580W+ N-type TOPCon modules (such as Hi-MO 7) to minimize LCOE.
Industrial and commercial roofs: If the load-bearing capacity allows, choose 560W-570W lightweight models for quick return on investment.
High temperature areas: HJT modules (such as Hi-MO 8) must be selected, and power generation losses are reduced by 3%-5% under high temperatures.
Complex terrain: with LONGi intelligent tracking bracket (Hi-Tracker), power generation is increased by another 8%-12%
solar panel application

Q: Why did I choose your company?

* Can provide Longi Jinko JA Trina Canadian Dinghui brand solar panels

* 15+ years of experience in installing solar panels, with professional engineers designing solutions

* Trade with customers in more than 70 countries around the world

* QC members will control the quality from the raw material to the final products

* 24-hour service available

* 7-day delivery upon receipt of payment

* Over 80% repurchase rate and 100% positive reviews

* Perfect after-sales service team

* Support any method of inspection, such as installation supervision, video, etc

* Will always follow the "professional" and "sincere"

* Guaranteed quality and complete certification

* Competitive prices bring higher profits to customers

* Multiple repeat purchases by customers

* A professional Solar Panels Manufacturer in China.

* Multiple warehouses and good cooperative factories in China

* Good reputation, guaranteed product quality, and many repeat customers

* Professional inspection process before shipment

Q: Can you get the solar panel customized for us?

A: Of course, brand name, solar panel color, designed unique patterns are available for customization.

Q: What kind of service can you provide once we place the order?

A: After we receive the order, we will arrange the production, and our QC members will control the quality from the raw material to the final products. We can arrange the shipment by sea. Meanwhile, as our staff have worked in this field for many years, we can also provide you one-stop solution for a solar energy system in a perfect way.

Q: Can the price of solar products be cheaper?

A: Of course, you will be offered a very good discount for large quantities.

Q: Whether technical support provided?

A: Yes, we can provide remote guidance, installation, and off-grid system support.
