photovoltaic panel 445-470W

Jinko Wholesale Price 445- 475W Solar Panels For Residential Project
Brand Name: Jinko

Place of Origin: Jiangsu, China
Model Number: 48HL4M-BDV
Cell size: 182 mm*182 mm
Type: Half Cell, PERC
Panel Efficiency: 23.0%
Panel Dimensions: 2278*1134*30 mm
Weight: 27.0 kg
Dimension: 2278x1134x30 mm
Output Cable: 4.0 mm2 (+): 400 mm , (-): 200 mm or Customized Length
Junction Box: IP68
  • Description

  • Product Parameters

  • FAQ

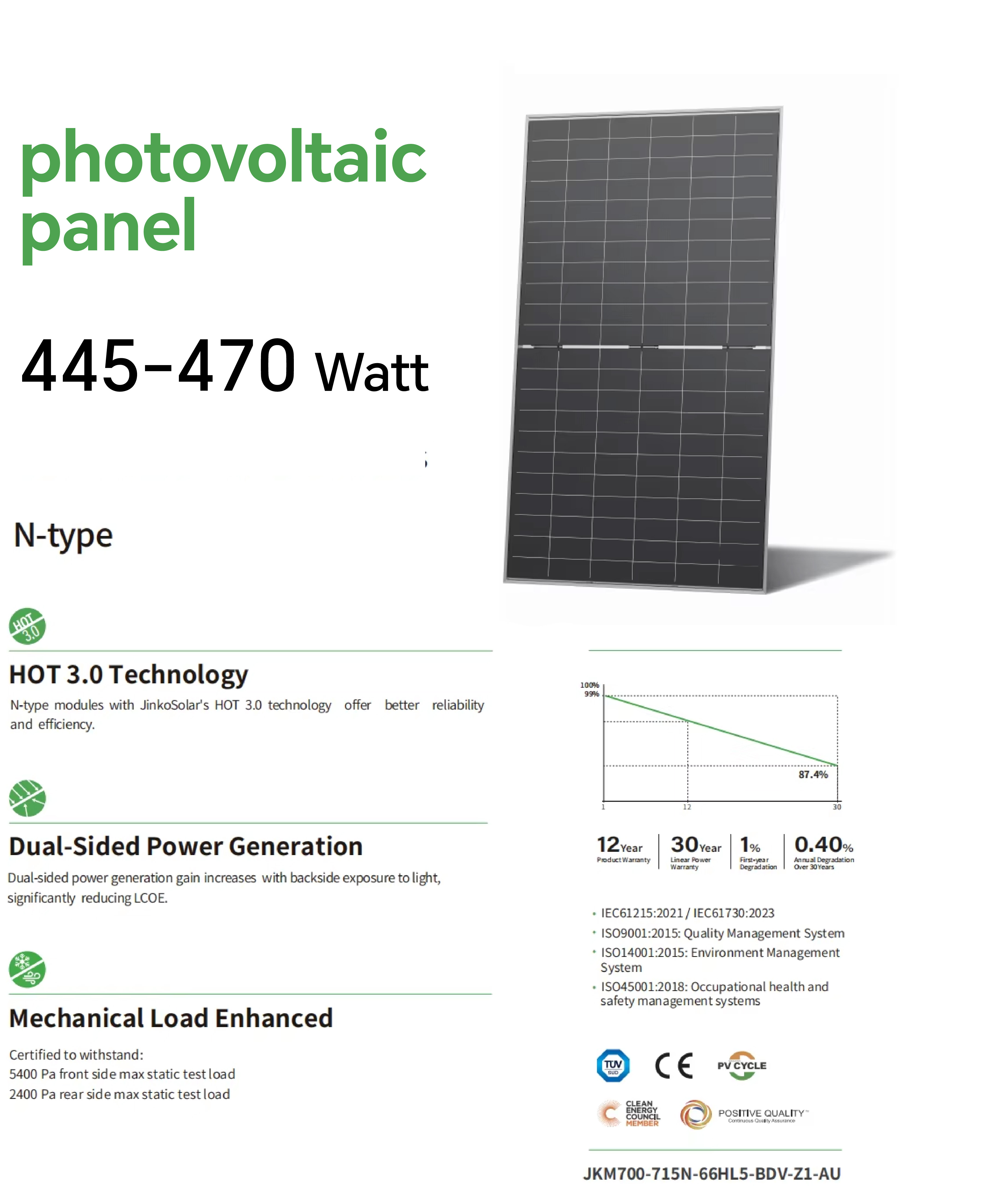

Jinko Solar's 445- 470W solar panels are representative products of its high-efficiency photovoltaic module series (such as the Tiger series or N-type TOPCon technology modules). With high power output, high reliability, and wide environmental adaptability as core advantages, they are suitable for large-scale ground power stations, industrial and commercial distributed systems, and household scenarios.solar panelMore Solar Panel Details
High power and high density design
Using large-size silicon wafers (M10/G12) and zero-pitch interconnection technology, the gap between cells is reduced and the power density of components is increased (5%-10% higher than traditional components).

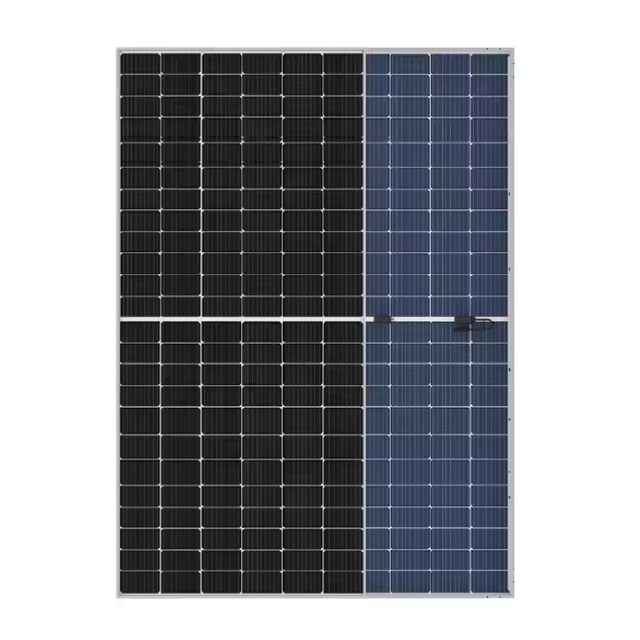

Bifacial power generation capacity (bifacial model)
The back gain reaches 10%-30% (highly reflective scenes such as snow and sand), which improves the overall power generation of the system.
Low attenuation and long life
The attenuation in the first year is ≤1%, the annual linear attenuation is ≤0.45% (PERC) or ≤0.4% (TOPCon), and the power output is guaranteed to be ≥85% in 25 years (TOPCon models can reach 87 %+).
Extreme environment adaptability
Anti-PID, anti-salt spray (C5 level anti-corrosion certification), strong wind (5400Pa) and snow load (2400Pa), and has passed international certifications such as IEC 61215/61730 and UL.

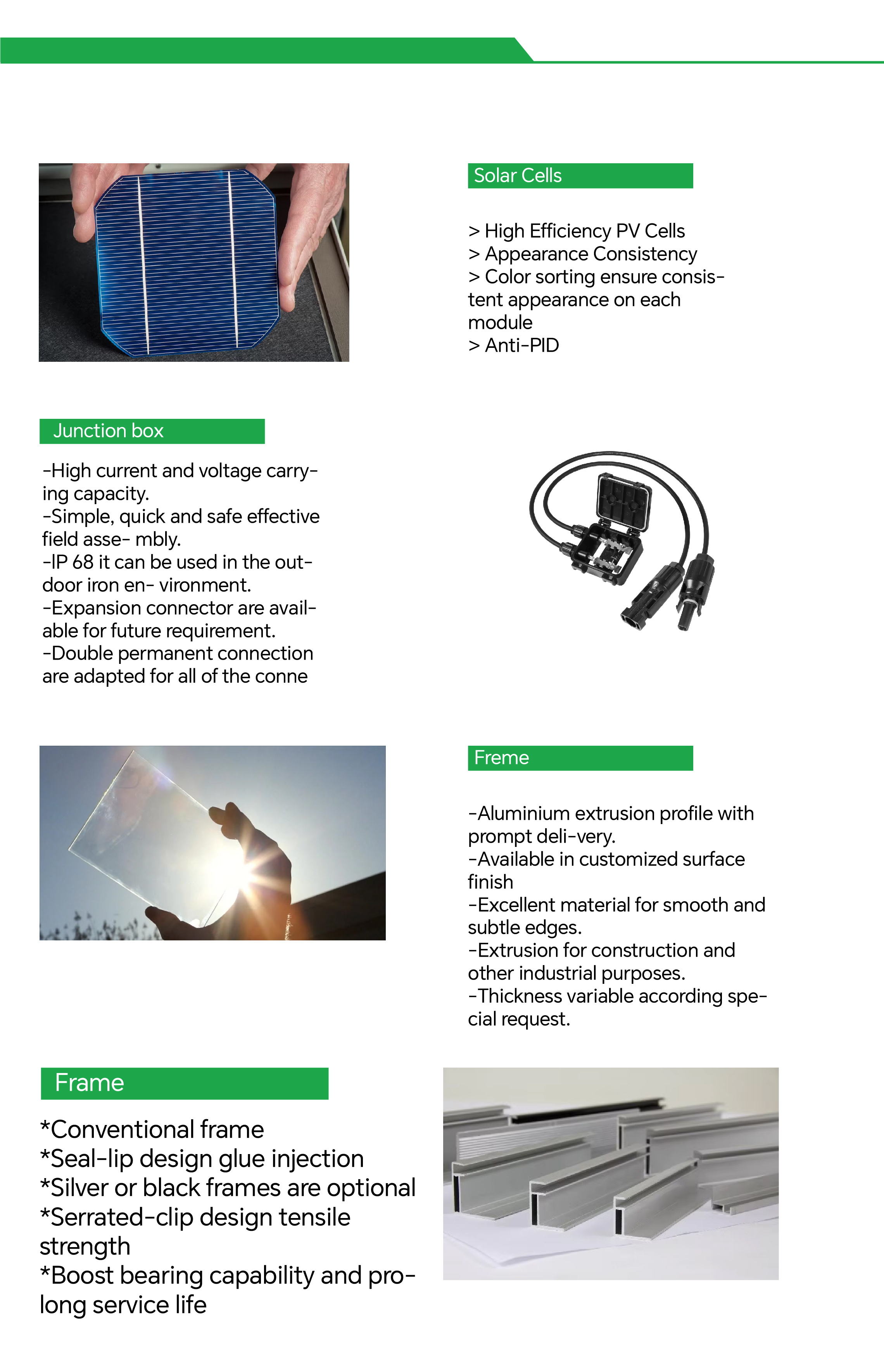

MORE SOLAR PANEL DETAILS

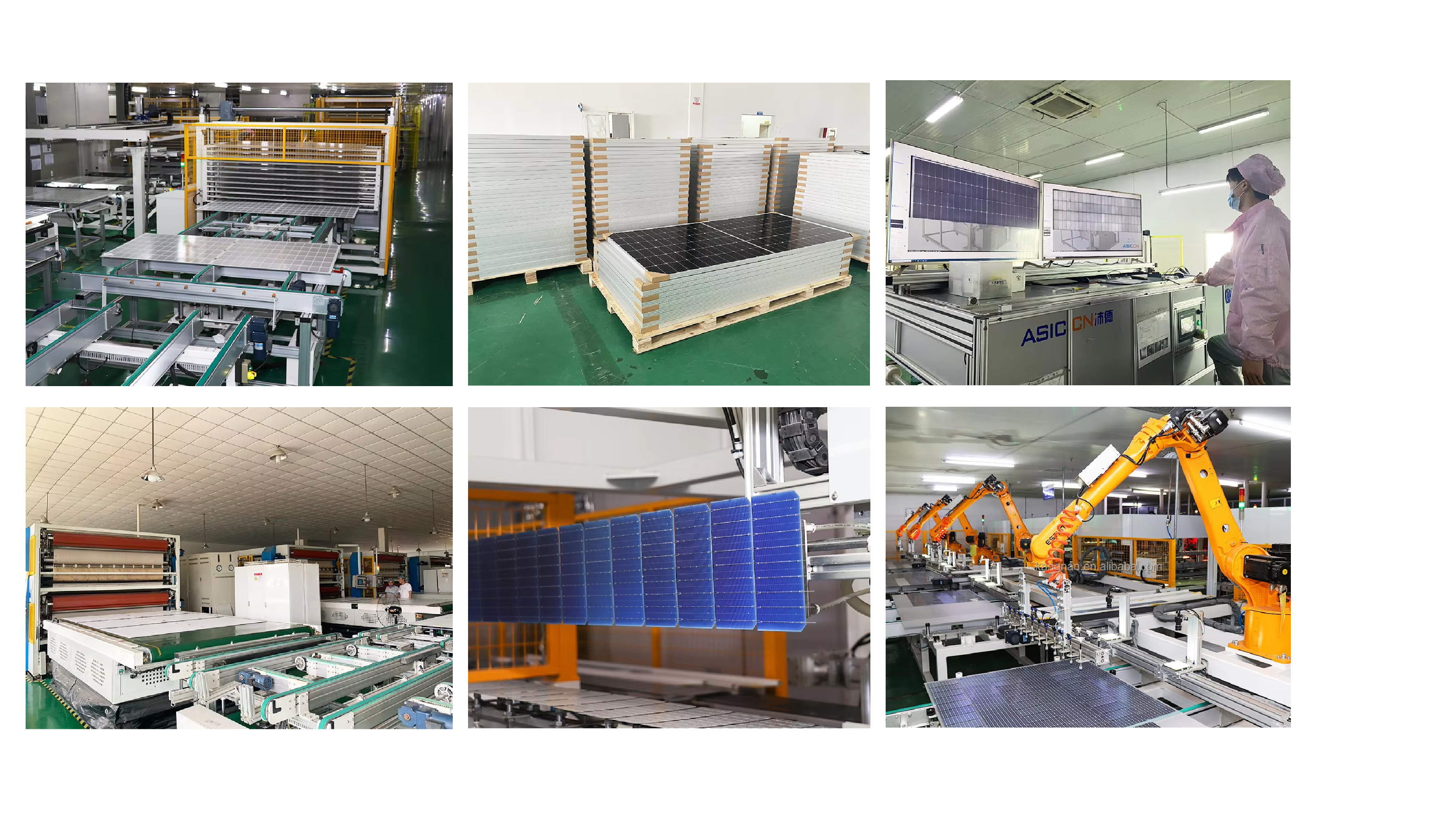

Factory Production Process
Factory Production Process

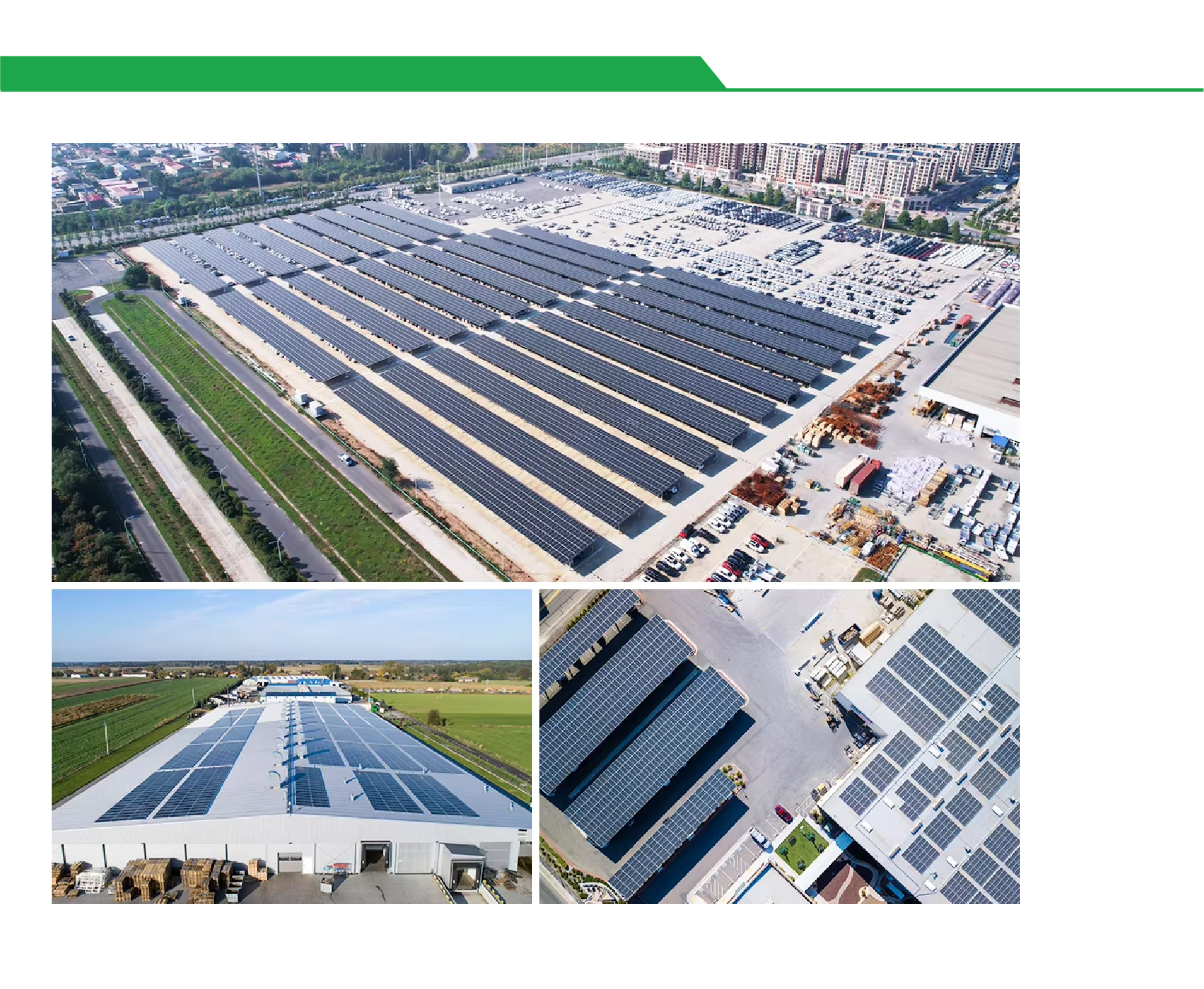

Application Scenarios of Solar Panels

With high power density, low attenuation, and wide environmental adaptability, JinkoSolar 445- 470W modules are ideal for industrial, commercial, household, and large power stations, especially for projects that pursue high power generation efficiency and long-term stable returns.

User selection suggestions
Industrial and commercial projects: Choose 460W+ PERC modules to reduce costs, or 470W TOPCon modules to increase long-term returns.

Household scenarios: When the roof area is limited, 470W modules can maximize the installed capacity; complex roofs are recommended to be equipped with power optimizers.

Highly reflective environment: Bifacial TOPCon modules (such as Tiger Neo bifacial version) must be selected to increase power generation using back gain.
Application Scenarios of Solar Panels

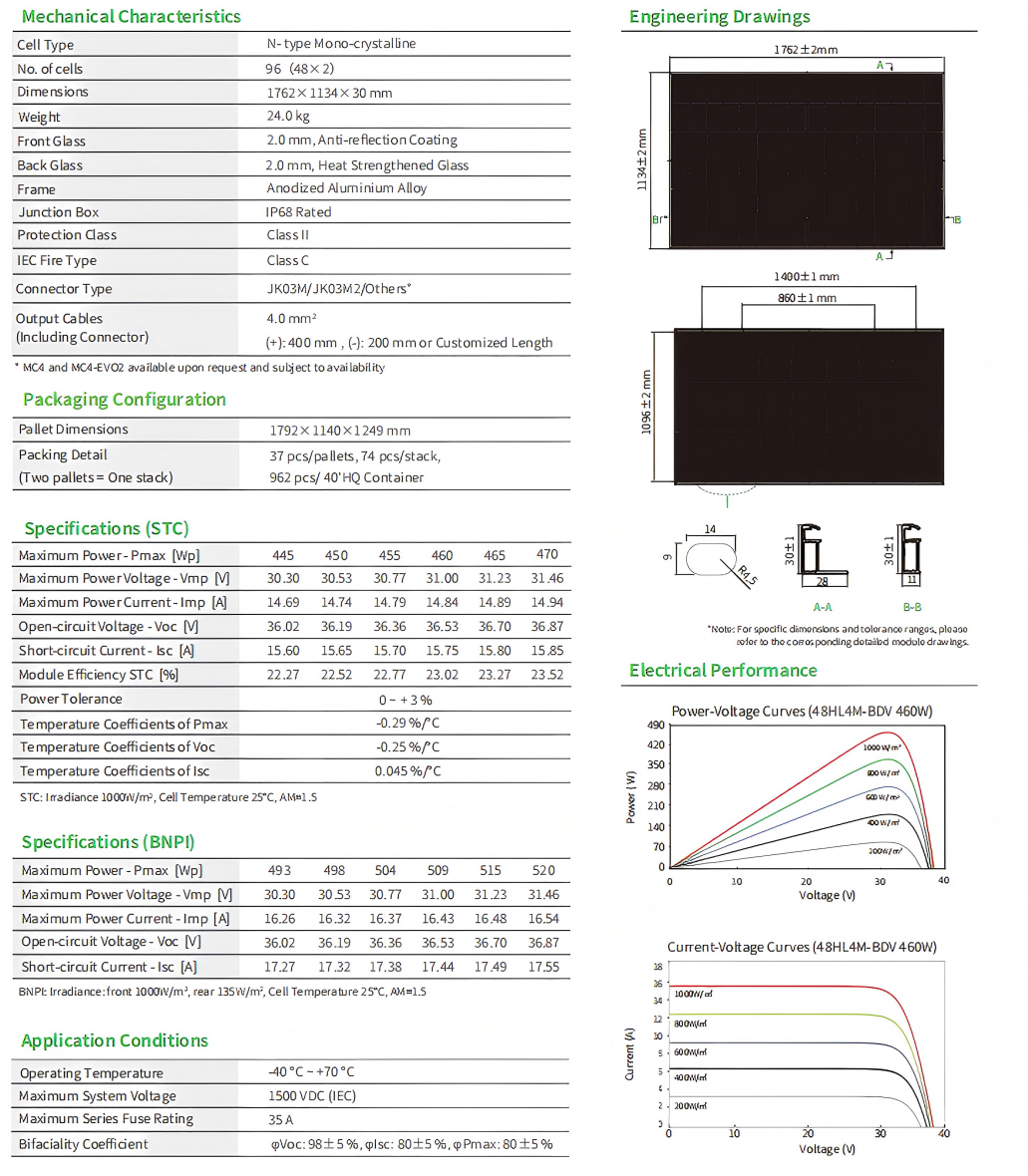

jinko 445-470w panels Parameters

Q: Why did I choose your company?

* Can provide Longi Jinko JA Trina Canadian Dinghui brand solar panels

* 15+ years of experience in installing solar panels, with professional engineers designing solutions

* Trade with customers in more than 70 countries around the world

* QC members will control the quality from the raw material to the final products

* 24-hour service available

* 7-day delivery upon receipt of payment

* Over 80% repurchase rate and 100% positive reviews

* Perfect after-sales service team

* Support any method of inspection, such as installation supervision, video, etc

* Will always follow the "professional" and "sincere"

* Guaranteed quality and complete certification

* Competitive prices bring higher profits to customers

* Multiple repeat purchases by customers

* A professional Solar Panels Manufacturer in China.

* Multiple warehouses and good cooperative factories in China

* Good reputation, guaranteed product quality, and many repeat customers

* Professional inspection process before shipment

Q: Can you get the solar panel customized for us?

A: Of course, brand name, solar panel color, designed unique patterns are available for customization.

Q: What kind of service can you provide once we place the order?

A: After we receive the order, we will arrange the production, and our QC members will control the quality from the raw material to the final products. We can arrange the shipment by sea. Meanwhile, as our staff have worked in this field for many years, we can also provide you one-stop solution for a solar energy system in a perfect way.

Q: Can the price of solar products be cheaper?

A: Of course, you will be offered a very good discount for large quantities.

Q: Whether technical support provided?

A: Yes, we can provide remote guidance, installation, and off-grid system support.
