Monocrystalline, Polycrystalline, and Thin-Film Solar Panels: Key Differences, Costs, and Efficiency Ratings

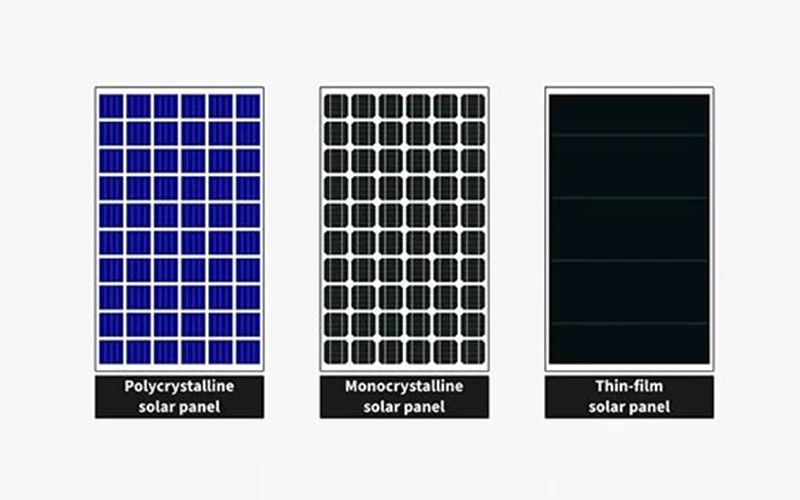

Monocrystalline, polycrystalline, and thin-film solar panels are the three most common types of solar panels on the market. These panels differ in appearance, performance, cost, and manufacturing methods. But do you know the key distinctions, costs, and efficiency levels of each type?
Mar 1st,2025
108 Views
Solar panels capture the sun’s energy and convert it into electricity. A typical solar panel consists of individual solar cells made of layers of silicon, boron, and phosphorus. The boron layer provides a positive charge, the phosphorus layer a negative charge, and the silicon acts as a semiconductor. When photons from sunlight strike the panel’s surface, they knock electrons free from the silicon into the electric field generated by the solar cell. This creates a directional current, which is then converted into usable power—a process known as the photovoltaic effect. Standard solar panels contain 60, 72, or 90 individual solar cells.
The term "monocrystalline" refers to the single-crystal silicon used to produce these panels, which is formed into bars and cut into wafers. Monocrystalline solar panels are among the most popular types despite their higher cost, primarily due to their high efficiency. Since monocrystalline cells are made of a single crystal, electrons have more space to move, resulting in higher efficiency compared to polycrystalline cells. Efficiency: 15%–19% (with some advanced models reaching up to 24%, the highest in the market). Cost: Slightly more expensive than polycrystalline and thin-film panels due to complex manufacturing. Lifespan: Retains about 80% efficiency after 25 years.
Polycrystalline panels typically have a blue hue because light reflects differently off the fragmented silicon crystals compared to monocrystalline wafers. They are less efficient in energy conversion and space utilization due to lower silicon purity and construction. They also perform poorly in high-temperature environments due to reduced heat tolerance. Efficiency: 13%–16%. Cost: Slightly cheaper than monocrystalline panels due to simpler manufacturing. Lifespan: Retains about 80% efficiency after 25 years.

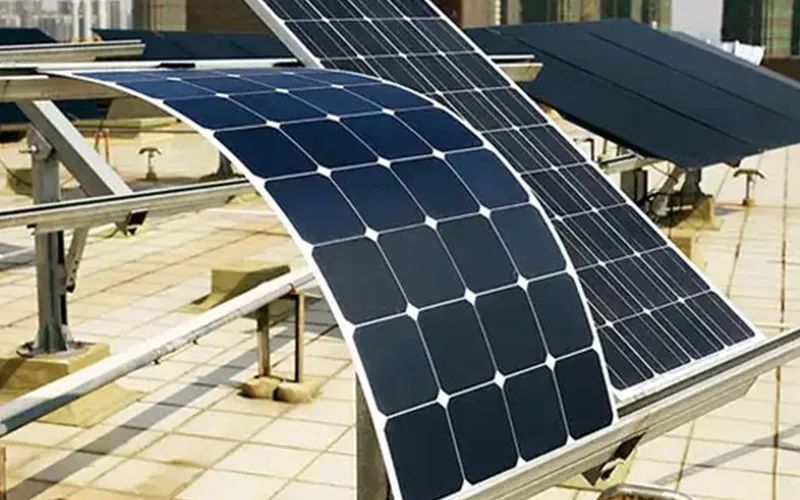

Thin-film panels feature lightweight, flexible layers and require no bulky framing, making them easier to install. Unlike rigid crystalline silicon panels (60/72/96 cells), thin-film panels can be customized for specific needs. However, they are less efficient and have shorter lifespans. Efficiency: 7%–13%. Cost: Generally cheaper than crystalline panels but less durable. Materials: Made from three primary materials: 1. Cadmium Telluride (CdTe): Low-cost with the smallest carbon footprint and fastest energy payback time. However, cadmium is toxic, increasing recycling costs. 2. Amorphous Silicon (a-Si): Uses minimal silicon, ideal for low-power applications (e.g., calculators) but highly inefficient. 3. Copper Indium Gallium Selenide (CIGS): Highest efficiency among thin-film types but still lags behind crystalline silicon.
Consider these priorities when choosing a panel type: 1. Affordability: Polycrystalline panels are cost-effective for tighter budgets, balancing upfront cost and energy absorption. 2. Aesthetics: Monocrystalline panels offer a sleek, symmetrical design for a modern rooftop appearance. 3. Limited Roof Space: Monocrystalline panels maximize energy output in space-constrained areas due to higher efficiency. 4. Efficiency: Monocrystalline panels are the top choice for maximizing energy conversion and reducing utility bills.
